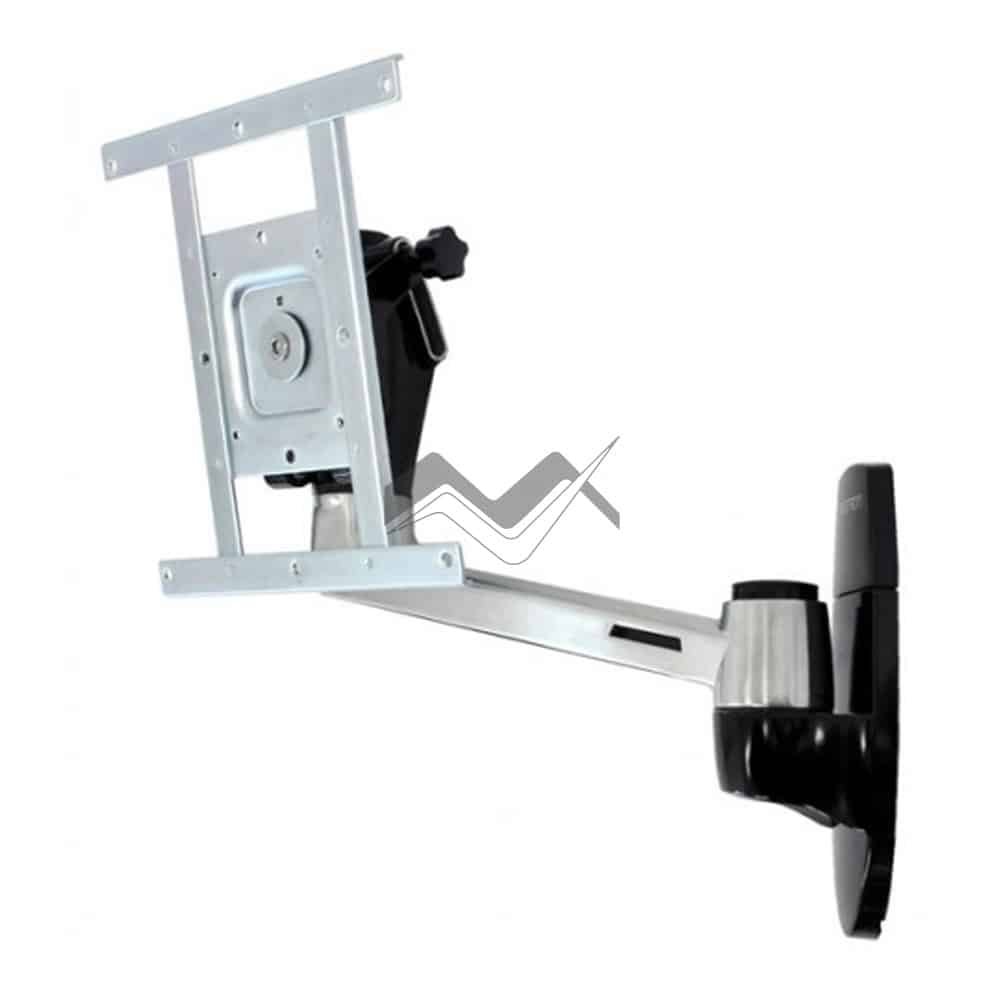

LX HD Wall Mount Swing Arm

LX HD Wall Mount Swing Arm The perfect TV wall mount: This arm offers a flexible alternative to rigid wall mounts for displays weighing up to 50 lbs (23 kg). Embedded CF technology enables effortless screen adjustment for optimal viewing comfort.

Benefits

• Arm extends display out from the wall up to 13'' (33 cm) for better sight lines
• Rock-solid construction secures your display investment
• Effortless adjustment for premium viewing
• Easy three-step installation
• Pleasing aesthetics make it perfect for the home or office
• Integrated tilt lock-down feature

Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
≤ 42''†	≤ 50 lbs 22.7 kg	—	20°	360°	360° P/L	MIS-D/E/F*

• Part Number: 45-268-026
• Description: LX HD Wall Mount Swing Arm (polished aluminum)
• Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall
• Includes knob on pivot to lock position of tilt
• UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
• † Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
• * Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
• Display depth greater than 4'' (10 cm) may diminish capacity
• Product Weight: 4.0 lbs (1.8 kg)
• Shipping Dimensions: 12.5'' x 7.75'' x 4.5'' (31.8 x 19.7 x 11.4 cm)
• Shipping Weight: 5.5 lbs (2.5 kg)
• Warranty: Five (5) years
