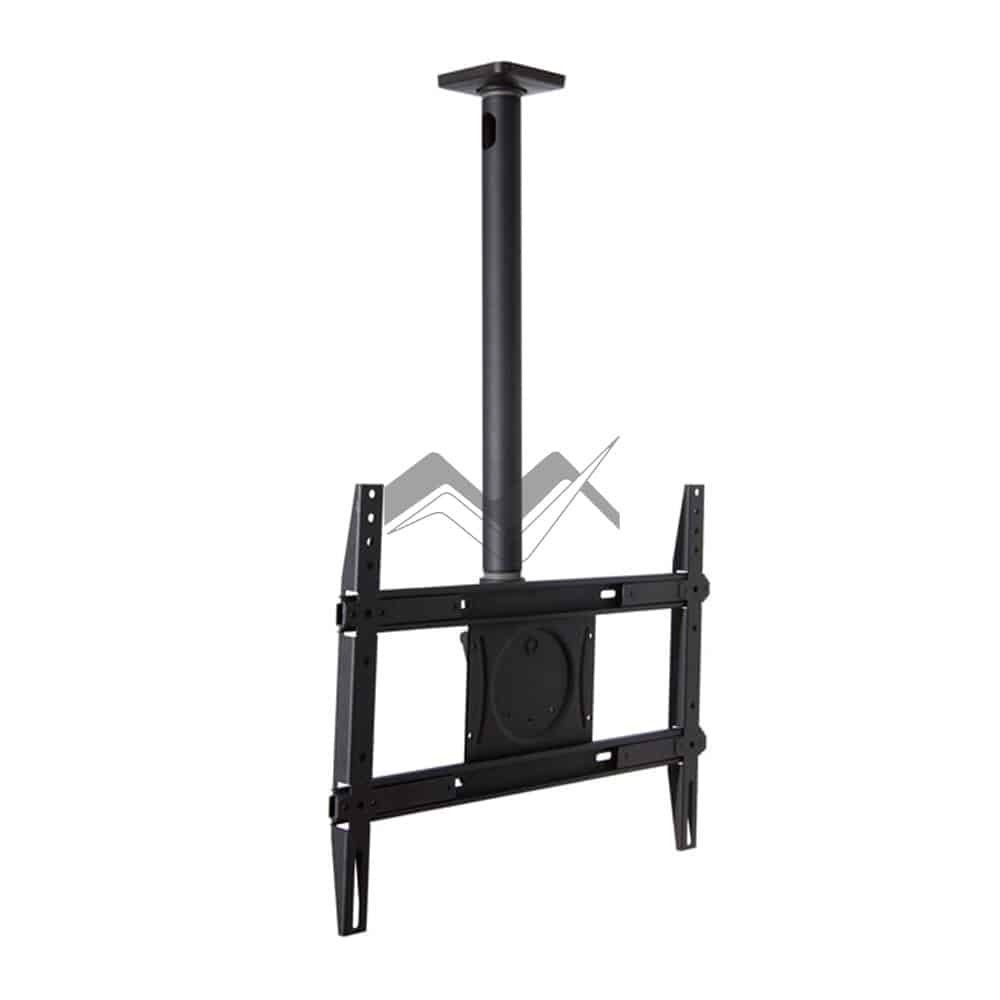

Neo-Flex Ceiling Mount

Neo-Flex Ceiling Mount is a solid mounting solution for ceiling application that comes with single flat panel and universal adapter for your TV or digital signage. Featuring tilt adjustment and portrait to landscape rotation, this strong ceiling mounting for TV has been tested and proven to hold four times its maximum load capacity per UL 1678 standard.

Benefits

How Does This Ceiling Mounting Solution for TV, Neo-Flex Ceiling Mount Benefit You?

• Neo-Flex® Ceiling Mount improves stability with tension adjustment and locking pin mechanism of variable tilt in 5º increments
• Neo-Flex® Ceiling Mount for TV provides integrated cable management that routes cables through NPT pipe and ceiling plate
• Neo-Flex® Ceiling Mount allows quick installation with Lift n’ Lock™
• Neo-Flex® Ceiling Mount for flat screen facilitates height adjustment and leveling that can be done after installation
• Neo-Flex® Ceiling Mount enhances security with teft-detterent feature

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
Neo-Flex® Ceiling Mount	32”-65”	≤125 lbs 56.7 kg	-	25°	-	-	MIS-E/F



	Neo-Flex® Ceiling Mount
Part Number	60-842-223
Description	Neo-Flex® Ceiling Mount for Single Large Display (black)
Includes	ceiling plate, tilt hanger, adaptor plate, universal adaptor, 24'' 1.5''-diameter NPT pipe, installation and grade 5 hardware kits
Screen Adjustment	Display can be installed in either a landscape or portrait orientation
Universal Monitor Attachment	Mounting holes must fit within spacing range below: Horizontal = 200 mm (min.) to 660 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.)
Compliant	Full compliance with RoHS directive
Shipping Dimensions	24.4'' x 20.9'' x 3.9'' (62 x 53 x 10 cm3)
Shipping Weight	24 lbs (10.9 kg)
Warranty	Three (3) years
