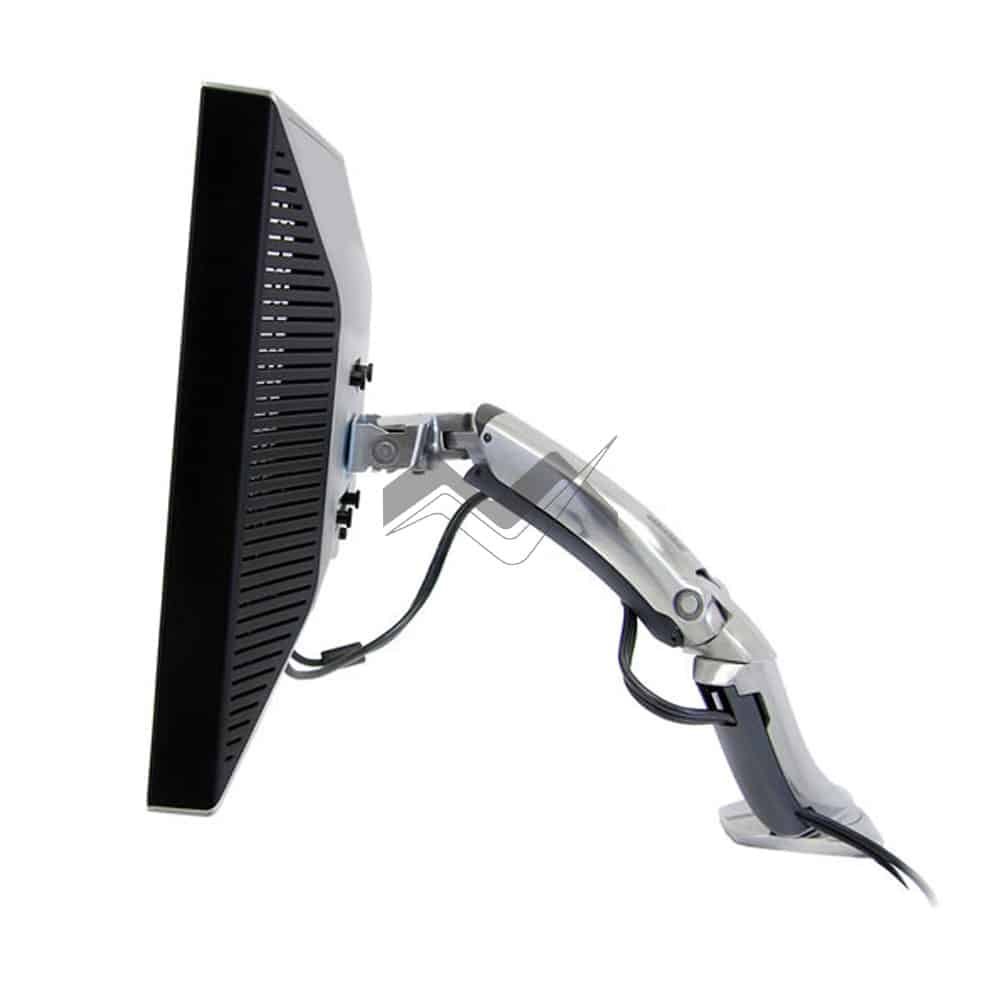

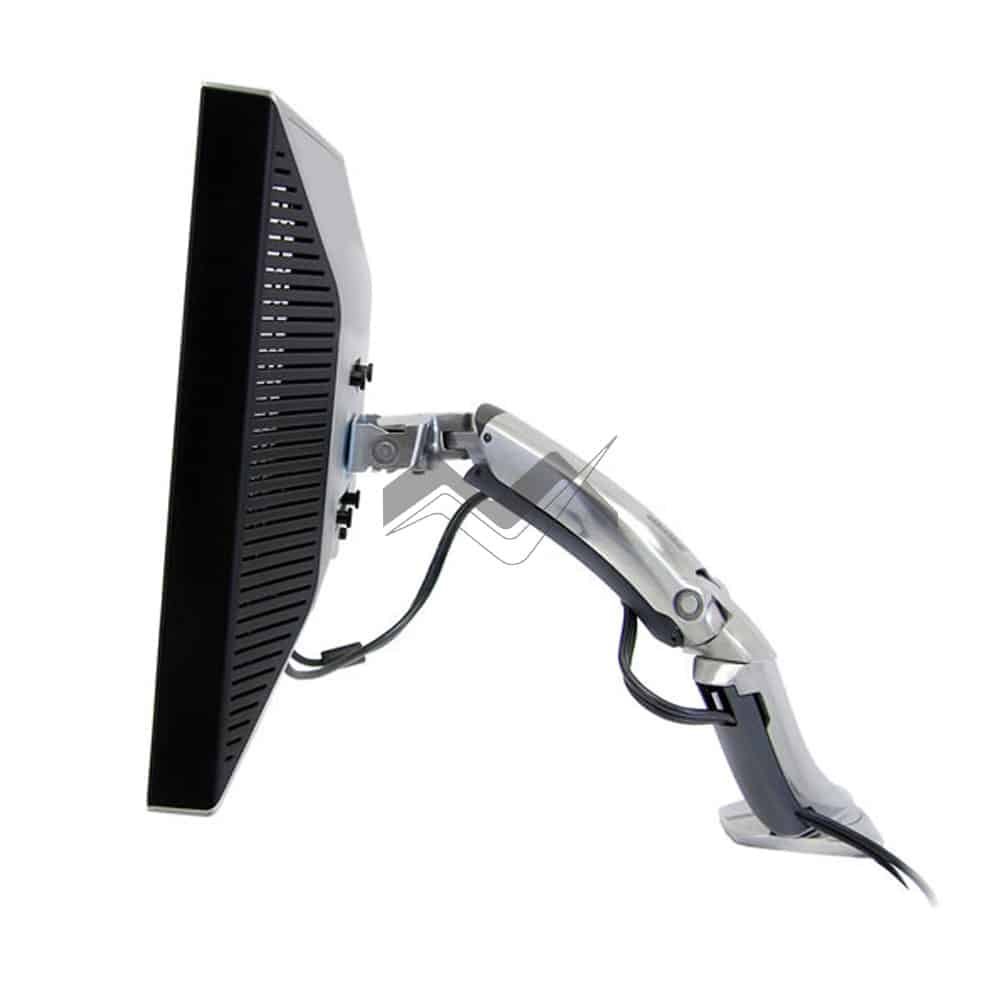

The sleek and adjustable MX Desk Mount LCD Arm accommodates mid-size displays and all-in-one computers weighing up to 30 lbs (13.6 kg).
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA | |
MX Desk Mount LCD Arm | ≤30” | 14-30 lbs 6.3-13.6 kg | 5” 13 cm | 80° | 360° | 90° P/L | MIS-D/E/F |
MX Desk Mount LCD Arm | |
Part Number | 45-214-026 |
Description | MX Desk Mount LCD Monitor Arm (polished aluminium) |
Includes | Desk clamp and grommet mount |
Mounting Options | Desk clamp attaches to surface edge 2.6'' (66 mm) thick; grommet mount attaches through surface holes .31'' to 2.0'' (8 to 51 mm) wide and up to 3'' (80 mm) thick |
Weight Capacity | 14 to 30 lbs (6.3 to 13.6 kg) Monitor depth greater than 4'' (102 mm) may diminish capacity. |
Monitor Adjustment |
|
Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm2 & 75 x 75 mm2); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm2); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm2). For displays that use a 400 x 200 mm2, 400 x 300 mm2 or 400 x 400 mm2 hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
Shipping Dimensions | 25.6'' x 7.3'' x 6.3'' (650 x 185 x 160 mm3) |
Shipping Weight | 9 lbs (4.2 kg); actual product weight: 7.7 lbs (3.5 kg) |
Warranty | Ten (10) years |
